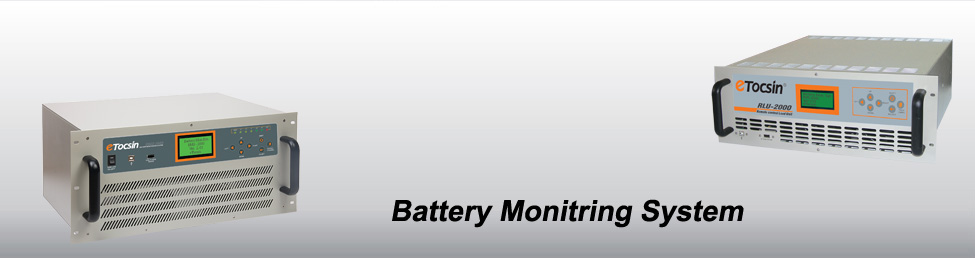

BMS Series Easy to Use BMS Series
BMS-2000H/L(1)
BMS-2000H/L(2)
RLU-2000

Network Feature

¡ø Specifications
Overview


Battery Monitoring System (BMS) is a comprehensive application of eTocsin's resistance test technology. This system can monitor the battery's operating parameters (float voltage, overall voltage, ambient temperature, etc.) and characteristic parameters (internal and intercell resistance), and perform a capacity test (using a load unit). It is a complete solution to monitor the battery

Features


* Use Single Large Current Discharge Method to periodically measure the internal and intercell resistance.
* Network access via TCP/IP, USB or RS485.
* 19¡± standard aluminum alloy case, easy to install, resistant to corrosion.
* Powerful network software, reliable tool to analyze the trend and performance.
* Monitor overall voltage, cell voltage, discharge/recharge current and ambient temperature.
* Standard Modbus protocol for compatibility.
* Quick data view by using the LCD and keys.
* Use an intelligent protocol converter to interface with other systems using a different protocol.
* From the hardware wiring to the software design, the multi-layer protections ensure the safety of the system.

* Monitor battery¡¯s all parameters, such as overall voltage, discharge/recharge current, cell voltage and temperature.
* Use Single Large Current Discharge Method to measure the internal and intercell resistance.
* Automatically periodically test the internal and intercell resistance, store the data, and then analyze the performance and trend.
* Automatically monitor the voltage and current during a discharge, store all data to be used to replay at a normal speed or a fast speed in the analysis.
* If any parameter exceeds the threshold set by a user, or a discharge occurs, the alarm will be triggered, and the contact person will be notified by the monitoring computer in several ways.
* From the hardware wiring to the software design, the multi-layer protections ensure the safety of the system
* Provide a network access via TCP/IP port.
* Use standard Modbus protocol for compatibility.
* Use an intelligent protocol converter to interface with other systems using a different protocol.
* Quick data view by using the LCD and keys.
* Based on Microsoft SQL and Access database, BMS software can manage unlimited battery locations, with powerful and reliable analysis.
